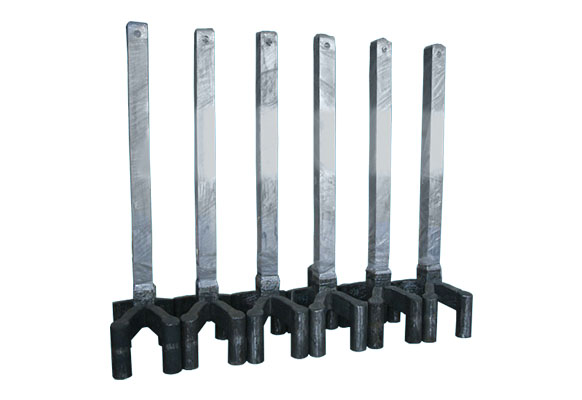

It is composed of cathode assembly anode, a conducting rod, an anode bracket, a coating material and a casing. The anode body is made of a long plate-shaped titanium matrix with conductive ceramic mixed metal oxides on its surface.The conducting rod is a solid titanium rod or a composite titanium rod with copper core, which is welded on the titanium matrix.The anode bracket is made of moulded glass fiber reinforced epoxy resin composite. The anode body with conductive rod is embedded into the moulded anode bracket. The sealing material of epoxy resin is used for encapsulation and fixation.The invention device has good electrochemical performance, and can work reliably under a large discharge, long service life, good stability, easy to install.Suitable for preventing electrochemical corrosion of metal structures such as large ships, floating docks, storage tankers, and hydraulic gates.

The combination of cathodic protection and coating can effectively prevent the corrosion of steel and other metal structures in seawater, salt water and fresh water.Depending on the mode of providing protection current, cathodic protection can be divided into sacrificial anode and impressed current methods.The sacrificial anode generates the cathodic protection current through the dissolution of the electronegative anode material itself.And impressed current cathodic protection method is through external dc power supply to provide the required protection current, its characteristic is high driving voltage, large output current, protection of life is long, and along with the change of working conditions of the outside world and automatically adjust the size of the output current, make the protected metal structure has been in the best state of protection.Impressed current cathodic protection systems are usually used for large naval ships or large Marine ships.
The cathode assembly anode produced by Chalco Aluminum are widely used in the electrolytic industry
