1 Introduction of Anode assembly
In the aluminum electrolysis production process, the anode steel claw & Anode Rod (Stem) assembly as a conductive unit plays a vital role in the uniformity of current distribution in the electrolytic cell and the stability of the electrolyte system, and its working temperature is 400-900 °C. The Anode Rod (Stem) assembly is composed of an Anode Rod (Stem), an Electrical Steel-Alu Transition Joints and an anode steel claws, wherein the anode steel claws is made of carbon steel, the Anode Rod (Stem) is made of aluminum, the Electrical Steel-Alu Transition Joints is made of steel and alu. The anode steel claws and Anode Rod (Stem) are welded together by an Electrical Steel-Alu Transition Joints to become a component.
2.Technical Parameter of Anode assembly:
3.Anode Assembly Structure Diagram
4.Features of Anode assembly:
Excellent Conductivity
Top Welding Quality
100% NDE Tested
Safe and Reliable
5, Assembly workshop:
6, Anode assembly Packing:
Anode assembly with Plastic wrapping or according to customer’s requirements
In the aluminum electrolysis production process, the anode steel claw & Anode Rod (Stem) assembly as a conductive unit plays a vital role in the uniformity of current distribution in the electrolytic cell and the stability of the electrolyte system, and its working temperature is 400-900 °C. The Anode Rod (Stem) assembly is composed of an Anode Rod (Stem), an Electrical Steel-Alu Transition Joints and an anode steel claws, wherein the anode steel claws is made of carbon steel, the Anode Rod (Stem) is made of aluminum, the Electrical Steel-Alu Transition Joints is made of steel and alu. The anode steel claws and Anode Rod (Stem) are welded together by an Electrical Steel-Alu Transition Joints to become a component.
2.Technical Parameter of Anode assembly:
| Material | Anode Rod (Stem) | Electrical Steel-Alu Transition Joints | Steel Yoke |
| 1050,1060 1070,4043,6063,etc |
Al 1050/1060 Steel Q235B or per Buyer’s Requirement |
Low Carbon Steel | |
| Process | The anode steel claws and Anode Rod (Stem) are welded together by an Electrical Steel-Alu Transition Joints to become a component | ||
| NDE Test | UT, MT, PT,etc | ||
3.Anode Assembly Structure Diagram
4.Features of Anode assembly:
Excellent Conductivity
Top Welding Quality
100% NDE Tested
Safe and Reliable
5, Assembly workshop:

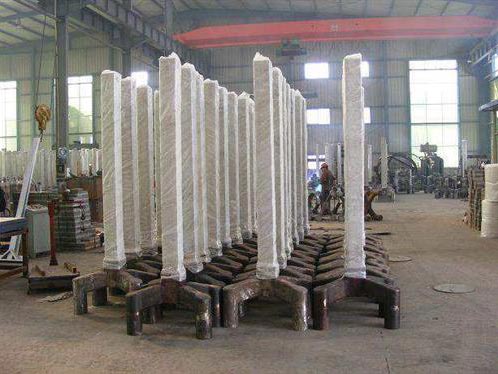

6, Anode assembly Packing:
Anode assembly with Plastic wrapping or according to customer’s requirements
