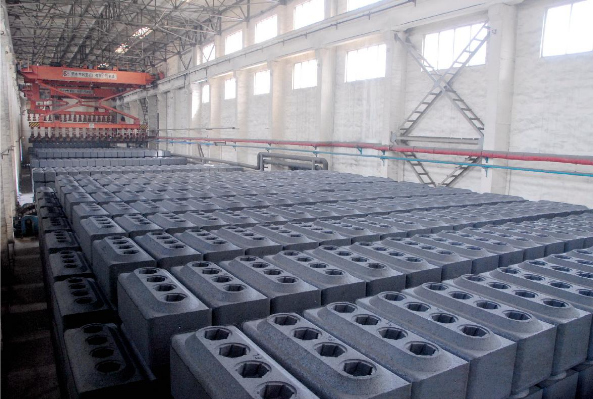

The process of combining anode guide rod, cast steel claw and pre-baked Anode carbon block supplier is called anode carbon block assembly.Each pre-baked anode carbon block block is composed of three parts: aluminum guide rod, cast steel claw head and pre-baked anode carbon block, which are connected by welding (between guide rod and cast steel claw) and cast iron casting to form the Anode carbon block supplier.Anode carbon block groups are generally single block groups, there are also two block groups and three block groups.Each aluminum cell is composed of 8-32 anode carbon blocks.



The aluminum guide rod is generally made of primary aluminum and aluminum alloy, with a length of 2000-2200mm and a transverse direction of rectangle. The size is determined by the amount of current passing through it. The general current density is 35-40a /Cm2.The cast steel claw head is made of ZG25 steel.According to the number of Anode carbon block supplier, the claw head has three claw heads, four claw heads, six claw head first-class form, the claw head is a straight line or rectangular arrangement, each carbon block is connected with at least two claw heads.The claw head should be sand washed and coated with graphite slurry before assembly, which can prevent the erosion of iron on the steel claw head, improve the contact state between the steel claw and the cast iron, reduce the contact pressure drop, and facilitate the removal of iron phosphorus when the guide rod is recycled
