Aluminum guide bar and aluminum busbar manufactuurer

 News     |      2019-05-31 17:52
IMG_256

Aluminum guide rod is the conductive body of carbon anode, and its structure consists of three parts: aluminum rod, steel claw and steel and aluminum joint.
Aluminum guide rod is made of first grade aluminum and aluminum alloy, the length of aluminum guide rod is 2000~2200mm, its cross section is rectangular, the size is determined by the current through it, the general current density is 35 ~ 40A/cm2.The cross-sectional area of the commonly used aluminum guide rod is rectangular or square. The dimensions are determined by the current passing through it, and the current density is generally 35 ~ 40A/cm2. The cross-sectional area of the commonly used aluminum guide rod is rectangular or square.The contact conductive surface between the aluminum guide rod and the horizontal bus shall be processed, which shall be straight and smooth with less oxidation film on the surface to reduce the contact resistance.
The aluminum bus is the direct current bus connecting the anode conducting rod of the rectifier cabinet with the electrolysis workshop.It is to send high power direct current, so that high direct current from the anode through the link of electrolysis, finally from the electrolysis of the cathode to the rectifier cabinet.Aluminum bus has high purity, low impurity and good conductivity.Aluminum bus is 14 meters in length, section size 550 х 250 mm, and the deviation is very small, small bending and deformation, surface smooth, corrugated, crack, and the internal structure is compact, no bubble, slag and internal crack, convenient installation.

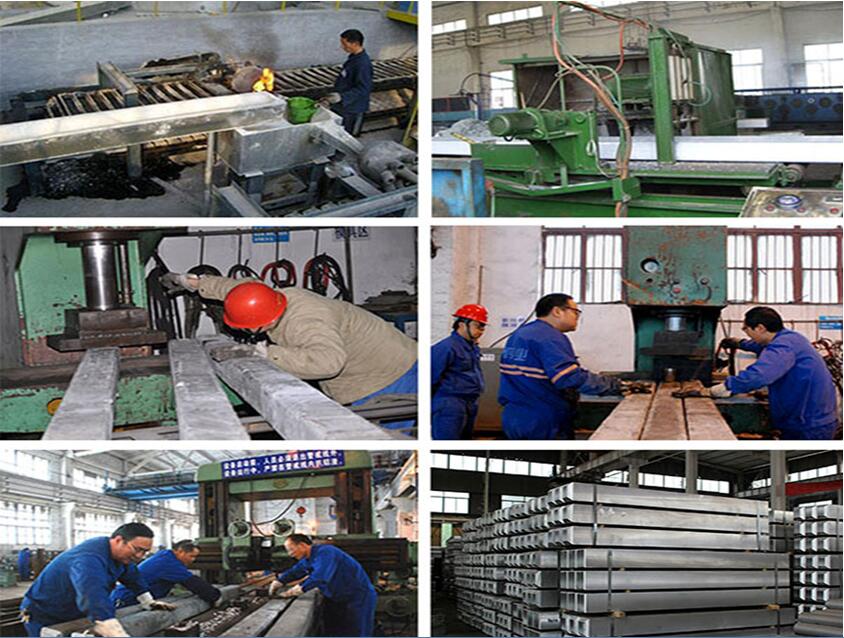

Henan Chalco aluminum using reasonable processing technology
and processing equipment, can process a variety of capacity electrolytic cell aluminum bus, aluminum guide bar specifications.Aluminum bus, aluminum guide bar processing specification, size and geometric shape requirements, appearance requirements, surface finish in line with the aluminum industry standards and design drawings, can avoid heat, reduce power consumption .
